4. A particle encounters a position-dependent potential energy as shown in the figure to the right. Choose the CORRECT statement(s):

(A) The maximum kinetic energy of the particle is 4×10⁻²⁰ J when its total energy is E₁.
(B) The maximum kinetic energy of the particle is 4×10⁻²⁰ J when its total energy is E₂.
(C) The particle experiences no force at r = 2×10⁻¹⁰ m when its total energy is E₁.
(D) The particle experiences no force at r = 2×10⁻¹⁰ m when its total energy is E₂.
(E) The particle experiences a maximum attractive force at r = 4×10⁻¹⁰ m when its total energy is E₂.
答案:登入後查看
統計: 尚無統計資料
統計: 尚無統計資料
詳解 (共 1 筆)
#7449343
所以這題看到位能圖
想到這幾個東西

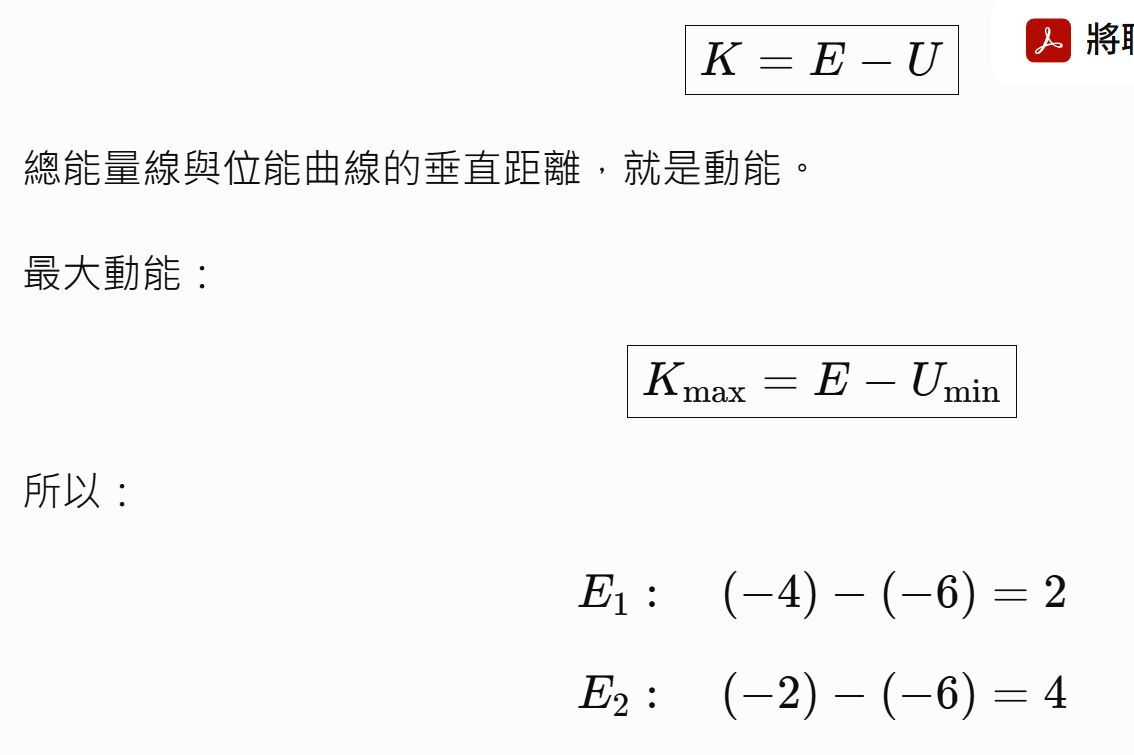

動能看垂直距離

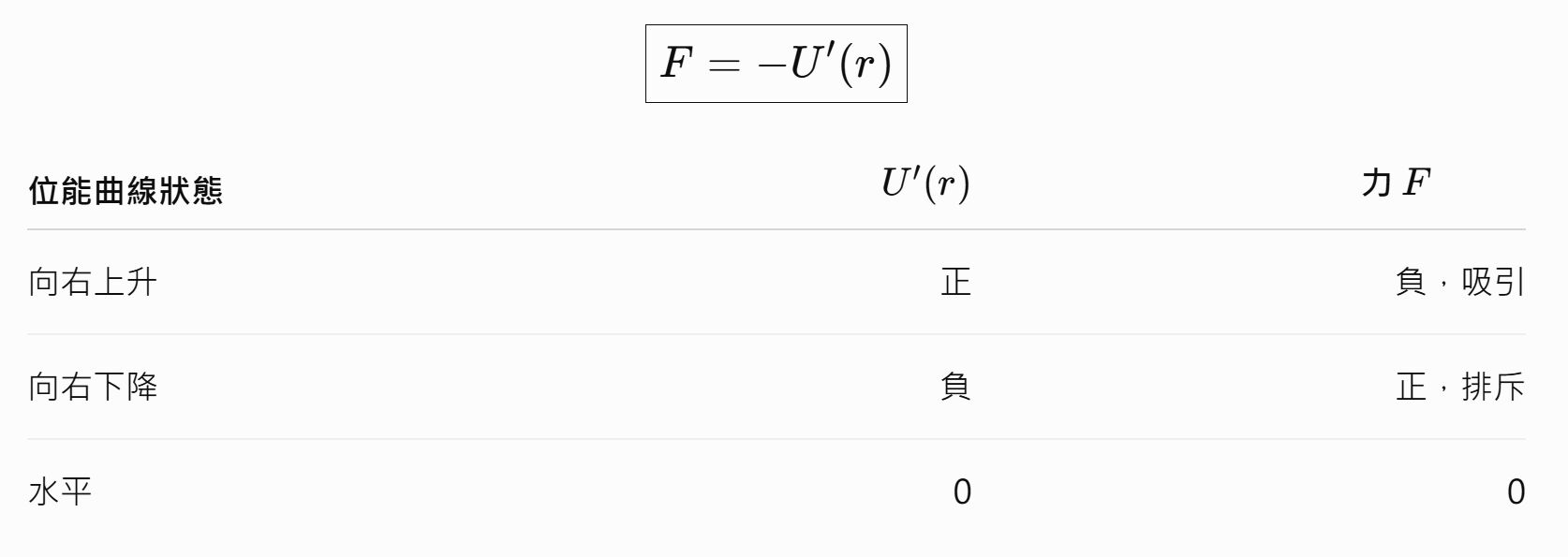

力和位能的關係看斜率

最低點不一定動能為0,但受力一定為0
交點動能為0,但力不一定為0
