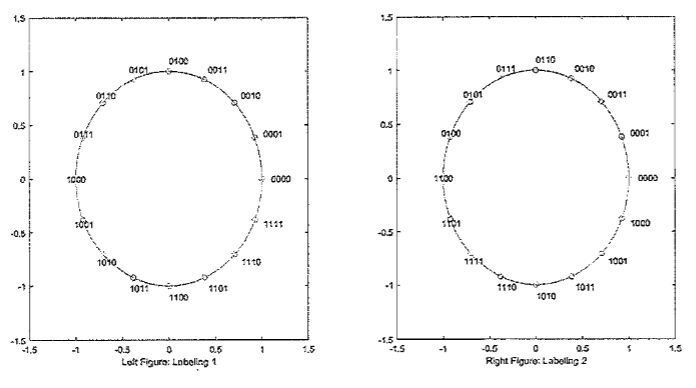

2. (20%) Constellations with two kinds of labeling are show as below. Symbols from the left and right figure, respectively, are transmitted over the AWGN channel.

(a) \( (3\%) \) How many information bits can be carried per symbol for the left figure?
